BRIDGE-TYPE ENGRAVING MACHINE
一體式龍門型結構完全針對高速雕銑所需之穩定性而設計
| 機器特性 |
Machine Features |

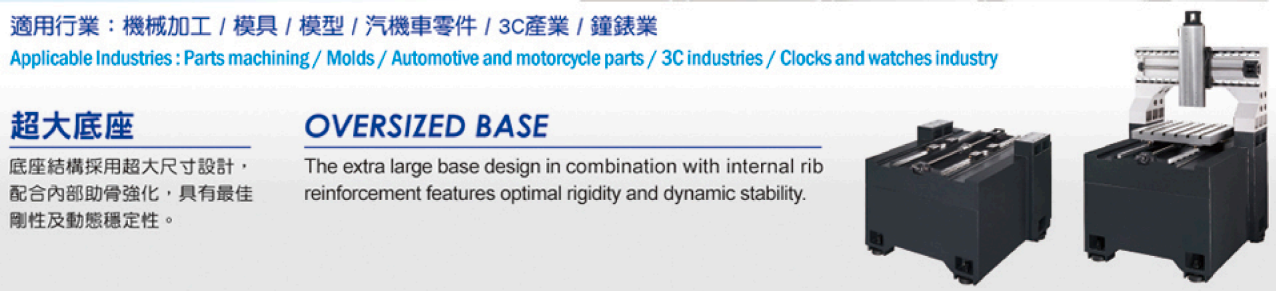

- 一體式龍門型結構,在高速雕銑時具有獨特穩定性。
- XIY/Z 軸全配置線性滑軌。
- X/Y軸快速位移30米/分,Z軸15米/分。 30,000 rpm 高速主軸(標配)。
- 60,000 rpm 高速內藏式主軸(選配)。
- 可選擇新代、寶元、三菱、發那科控制器。
- ISO25,12刀傘型刀庫。
|
- One-piece fabricated bridge type construction provides ultra-high stability in high speed engraving operation.
- Linear motion guides on X, Y, Z-axis.
- 30 m/min. rapid traverse rate on X, Y axis and 15 m/min. on Z-axis.
- 30,000 rpm high speed spindle is standard.
- 60,000 rpm high speed built-in type spindle is optional.
- SYNTEC, LNC, MITSUBISHI, FANUC Control.
- ISO25, 12 tool armless type magazine.
|
規格 / SPECIFICATION
| 機型 |
MODEL |
PBM-600 |
| 工作台 |
TABLE |
| 工作台尺寸 |
Table Surface Size |
600 x 550 mm |
| 工作檯負重能力 |
Table Loading |
100 kg |
| 行程 |
TRAVEL AXIS |
| X / Y / Z 軸行程 |
X / Y / Z axis Travel |
500 x 500 x 200 mm |
| 主軸鼻端至工作台 |
Spindle Nose to Table |
- |
| 主軸 |
SPINDLE |
| 主軸馬達 |
Spindle Motor |
3.7 kW |
| 主軸最大轉速 |
Spindle Speed |
24,000 rpm |
| 主軸錐度 |
Spindle Taper |
BT-30 |
| 進給馬達 |
AXIS MOTORS |
| X / Y / Z 軸 |
X / Y / Z Axis |
1.0 / 1.0 / 1.0 kW |
| X / Y / Z 軸快速位移 |
X / Y / Z Rapid Traverse |
X / Y: 30 m/min ; Z: 15 m/min |
| 其它 |
OTHERS |
| 機器淨重 |
Machine Weight (N.W) |
2,000 kg |
| 機器尺寸 |
Machine Dimensions (W x D x H) |
1,750 x 1,450 x 1,900 mm |
| 所需氣壓 |
Air Pressure Required |
6 ~ 8 kg / cm² |
| 電源容量 |
Power Consumption |
15 KVA |
| T 型槽(寬 x 槽數 x 間距) |
T - Slot (Width x No. x Dist.) |
14 x 6 x 90 mm |
| PBM-600 標準配備 |
PBM-600 Standard Accessories |
- 自動潤滑系統
- 切削冷卻裝置
- 外罩式飯金
- 操作及程式手冊
- 工具箱
- 傘型刀庫12把刀(BT-30)
- 熱交換器
- 水平調整螺栓及墊塊
- 工作燈及三層警示燈
- 油冷機
|
- Auto lubrication system
- Coolant system
- Full enclosure
- Operation and programming manual
- Tool box
- 12 tool umbrella type magazine
- Heat exchanger
- Leveling bolts and pads
- Working light and 3 color alarm indicator
- Spindle cooler
|
| PBM-600選購配備 |
PBM-600 Optional Accessories |
- 電子探測器(自動刀具長度量測)
- 60,000 rpm高速內藏式主軸
- 穩壓變壓器
- 油水分離機
- 第四軸旋轉工作台
- 油霧回收機
- 鐵屑輸送機
|
- Electronic touch probe (A.T.L.M)
- 60,000 rpm built-in spindle
- Automatic voltage regulator (A.V.R)
- Oil skimmer
- 4th axis rotary table
- Oil mist collector
- Chip conveyo
|
