| 品牌 | 錩鋼 |
|---|
此商品目前補貨中，請稍後再來。

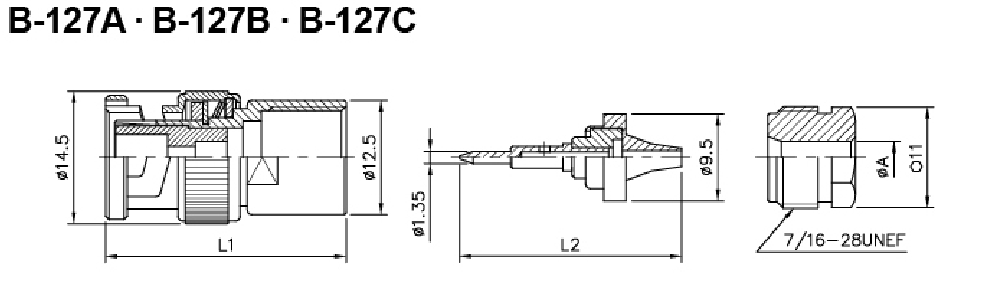

| Model No. | Equivalent identification |
Cables accommodated |
ØA | L1 | L2 | ØC | Remarks |
|---|---|---|---|---|---|---|---|
| B-127 A | BNC-P-174 | RG-174-U | Ø3.5 | 26 | 24.4 | ||
| B-127 B | BNC-P-58 | RG-58A/U, 58/U | M6x1 | 26 | 24.4 | ||
| B-127 C | BNC-P-59 | RG-59/U, RG-62/U | 9/32-28UNEF | 26 | 24.4 |
|
| Voltage Rating | AC 500V |
| Withstanding Voltage | AC 1,500V one minute |
| Insulation Resistance | 1,000MΩ min at DC 500V |
| Contact Resistance | 3m Ω max at DC 1A |
| Frequency Range | 1-2 GHz |
