| 品牌 | 錩鋼 |
|---|
此商品目前補貨中，請稍後再來。

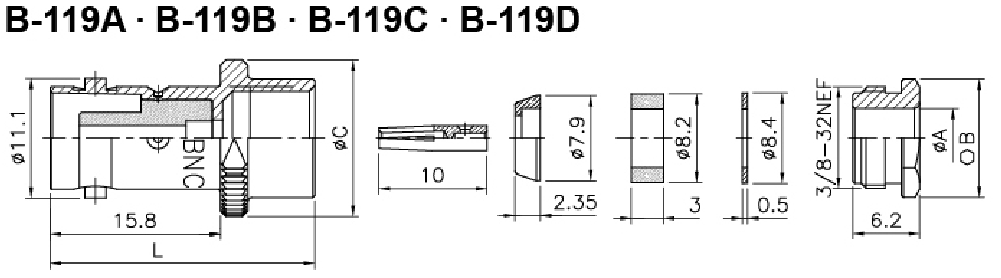

| Model No. | Equivalent identification |
Cables accommodated |
ØA | OB | ØC | H | L |
|---|---|---|---|---|---|---|---|
| B-119 A | BNC-J-58U | RG-58A/U, 58/U | Ø5.5 | ⬡ 9.5 | Ø15.4 | 12.5 | 24.5 |
| B-119 B | BNC-J-62U | RG-59U, 62/U | Ø6.6 | ⬡10.8 | Ø14 | 12.7 | 28.5 |
| B-119 C | BNC-J-3 | 3D-2V, 3C-2V | Ø6.3 | ⬡10.8 | Ø14 | 12.7 | 28.5 |
| B-119 D | BNC-J-5 | 5D-2V, 5C-2V | Ø8.0 | ⬡15.9 | Ø17 | 16 | 33.9 |
| Voltage Rating | AC 500V |
| Withstanding Voltage | AC 1,500V one minute |
| Insulation Resistance | 1,000MΩ min at DC 500V |
| Contact Resistance | 3m Ω max at DC 1A |
| Frequency Range | 1-2 GHz |
