| 品牌 | 錩鋼 |
|---|
此商品目前補貨中，請稍後再來。

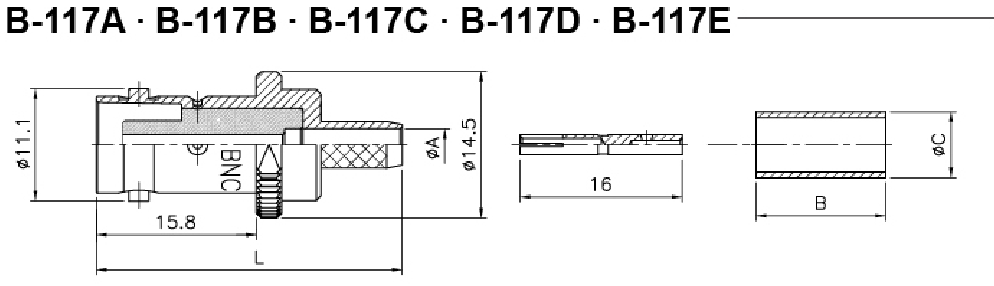

| Model No. | Equivalent identification |
Cables accommodated |
ØA | B | ØC | L | Remarks |
|---|---|---|---|---|---|---|---|
| B-117 A | BNC-J-58U | RG-55/U, RG-58/U | Ø3.2 | 12.8 | Ø6.5 | 30.2 | |
| B-117 B | BNC-J-174U | RG-174U | Ø3 | 12.8 | Ø5.3 | 30.2 | |
| B-117 C | BNC-1.5 | 1.5C-2V ( 1.5D-2V ) | Ø2.2 | 12.8 | Ø5.3 | 30.2 | |
| B-117 D | BNC-J-3 | 3C-2V | Ø3.3 | 12.8 | Ø6.5 | 30.2 | |
| B-117 E | BNC-J-5 | 5C-2V | Ø5.3 | 12.8 | Ø9.2 | 30.2 |
| Voltage Rating | AC 500V |
| Withstanding Voltage | AC 1,500V one minute |
| Insulation Resistance | 1,000MΩ min at DC 500V |
| Contact Resistance | 3m Ω max at DC 1A |
| Frequency Range | 1-2 GHz |
