| 品牌 | 錩鋼 |
|---|
此商品目前補貨中，請稍後再來。
| Model No. | Equivalent identification |
Cables accommodated |
ØA | ØB | L | Remarks |
|---|---|---|---|---|---|---|

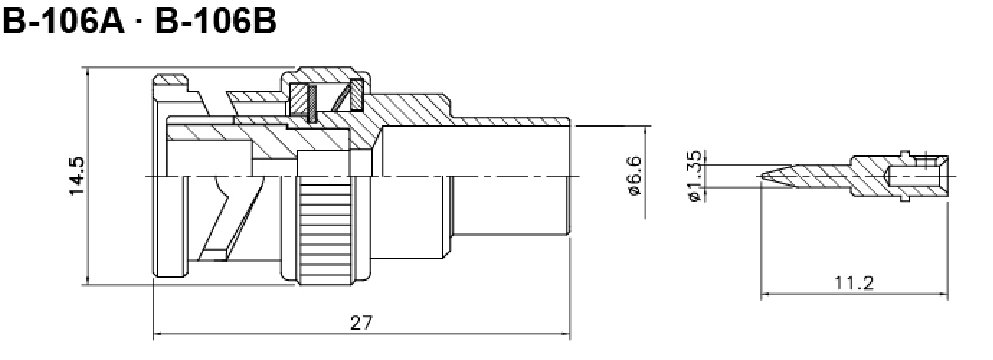

| B-106 A | BNC-P-MOLDED | RG-55/U, RG-58/U | Ø5.5 | Ø6.8 | 27 | |
| B-106 B | BNC-P-MOLDED | RG-59/U, RG-62/U | Ø6.6 | Ø7.5 | 27 |
| Voltage Rating | AC 500V |
| Withstanding Voltage | AC 1,500V one minute |
| Insulation Resistance | 1,000MΩ min at DC 500V |
| Contact Resistance | 3m Ω max at DC 1A |
| Frequency Range | 1-2 GHz |
